For inquiry about Filter, filter cloth, wire mesh, screen mesh,
please feel free to contact AAAmachine at toll free # 800-996-0070
or use the questionnaire at the bottom of this page.

Asada Mesh (Japan)

Stainless steel wire mesh (13 to 250 micron opening)

Stainless steel wire mesh(13 to 250 micron opening)  👉 contact  👉 Detailed web site  👉〔catalog〕Oblong sieve flier  (1,260kb)  👉〔catalog〕13 micron opening wire mesh  (1,298kb)  👉〔catalog〕Wire mesh general brochure  (1,260kb)

(1) Opening accuracy is less than ±10％
（ex. 45μm opening range is from 41 to 49μm）
(2) Various Ultra fine opening mesh from 54 to16μm. ==> 13μm opening mesh is NOW available.

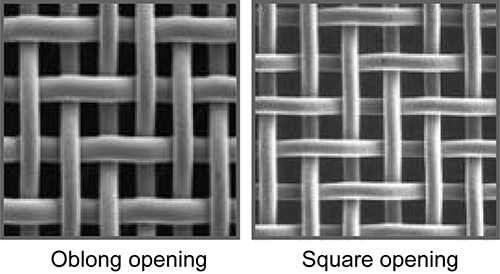

(3) Oblong (rectangular) opening mesh is available especially for metal spherical powder. Spherical powder can easily go through rectangular opening because it does not touch 2 wires.
==> 25 x 32, 25 x 36, 25 x 40, 34 x 58, 45 x 53, 45 x 72 micron opening (Detailed spec.(1,255kb))
(4) High Opening Rate - Hard Mesh（Super mesh: 230 to 360 mesh）
Ultra hard and fine wire materials (about half diameter of the conventional wire --- 20/45 microns, 23/40 microns wire dia.) has made it possible to weave high opening rate mesh with high tensile strength. It increases processing capacity dramatically (50% more capacity at 54 - 80 microns opening).

Sieve: Solder, Toner, Silica, Silver powder, carrier, CaCO3, Battery material, Abrasive, Aluminum flake powder, Talc, Glass beads, Alumina etc.
Filter: Automotive component, Distilling column, Oil filter, Paste filtering, etc.

industrial screen mesh for sieve / sifter / filter - NAFITEC

	NBC Meshtec  (USA/Japan)

👉  Detailed web site 👉  contact 👉 〔catalog〕Nafitec_screen_mesh(758kb) 👉〔catalog〕Screen_Mesh_Spec_Table_40inch width (112kb) 👉〔catalog〕Screen_Mesh_Spec_Table_42inch width or wider (104kb)

(1) Nylon, Polyester and other material available in wide range of screen mesh size

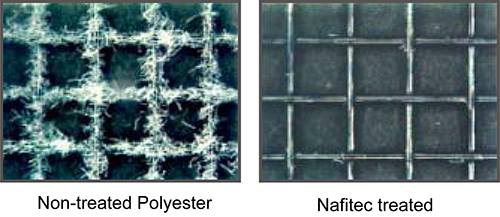

(2) Nafitec treatment to Nylon/Wiremesh screens is creating new market == more air flow with finer mesh, less clogging with same opening mesh, etc.
(3) To be used as industrial filter
(4) Insect net for HACCP/IPM

food, plastics, metal, insect/mosquito mesh
