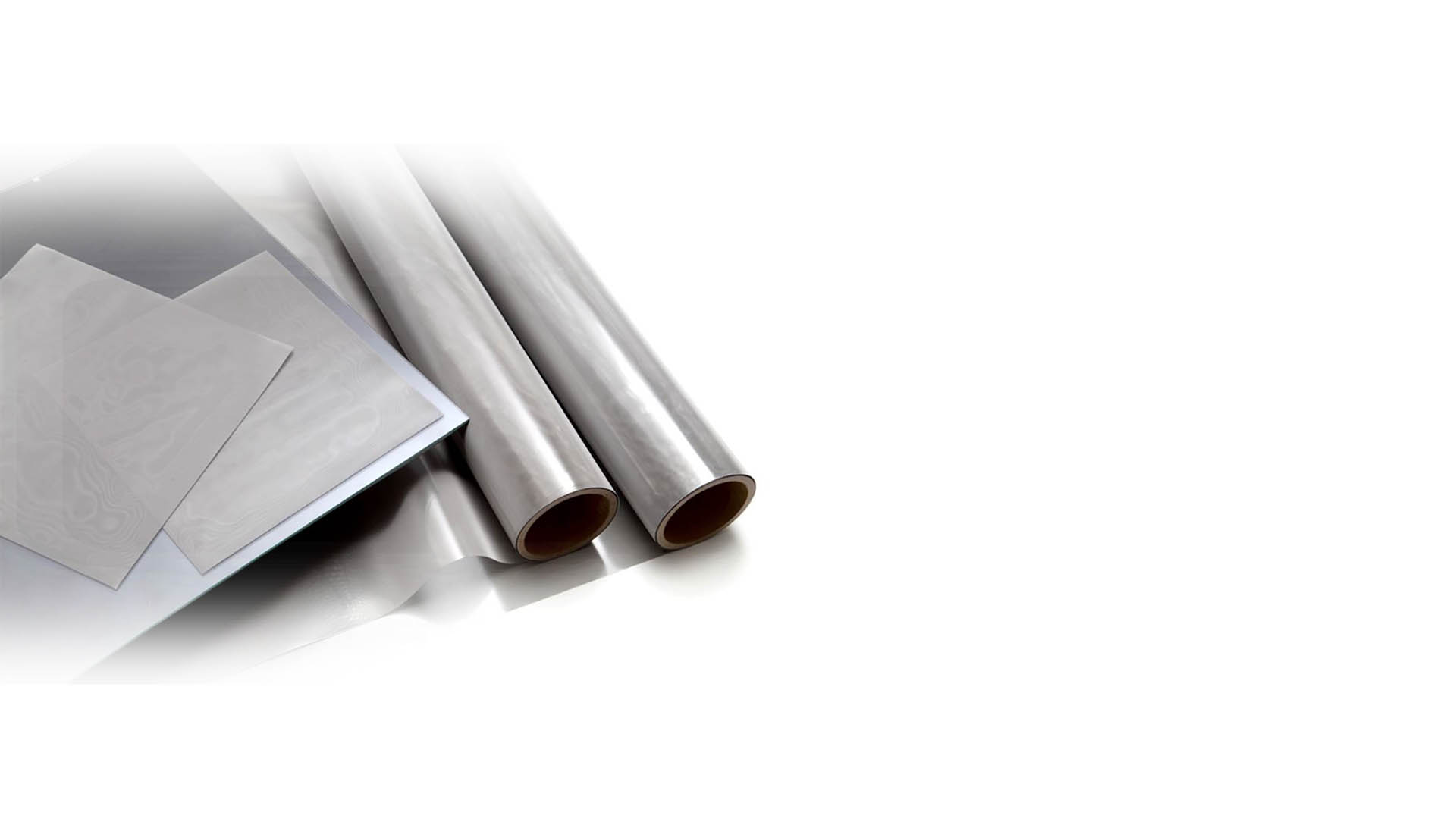

Asada Mesh (wire mesh) for screen printing & sieve/sifter

Contact Asada Mesh
c/o AAAmachine. Inc.
1291 Rand Road, Des Plaines, IL 60016
Toll free: 800-996-0070

  Development history of Asada Mesh Stainless Mesh for Sieving and Filtration
1973 500 mesh (Opening  26μm)
• 1988 635 mesh (Opening  20μm)
• 1998 795 mesh (Opening  16μm)
• 2000 Ayadatami ori
• 2005 Ayadatami ori (finer mesh)
• 2012 900 mesh  to be developed
Asada Mesh is continuing developing wire mesh technology.

 ◆ Special Features of Asada Mesh
New brochure (please download pdf file 1260kb)
 Ton-Cap (Oblong opening) Twilled   Supermesh


For sieving purpose, please visit the following page for details.
Asada Mesh - Wire Mesh for sieves

< Several features >
(1) Opening accuracy is less than ±10%
(ex. 45μm opening range is from 41 to 49μm)

(2) Various Ultra fine opening mesh from 54 to16μm.

(3) More capacity - Hard Mesh(Super mesh: 230 to 360 mesh)Ultra hard and fine wire materials (about half diameter of the conventional wire --- 20/45 microns, 23/40 microns wire dia.) has made it possible to weave high opening rate mesh with high tensile strength. It increases processing capacity dramatically (50% more capacity at 54 - 80 microns opening).

Oblong (rectangular) opening mesh is available especially for metal spherical powder. Spherical powder can easily go through rectangular opening because it does not touch 2 wires.
=====> 25 x 32, 25 x 36, 25 x 40, 34 x 58, 45 x 53, 45 x 72 micron opening (Detailed spec. (1,255kb))

 Weaving technology and applications of Asada Mesh

◆ Fundamental Weaving Structure for Sieving & Filter Applications

 Plain Plain Dutch  Supermesh  Twilled

 Twilled Dutch  Reverse Twilled Dutch  Ton-Cap  Reverse Plain Dutch

Roll-Calendared  3D-mesh  Solid mesh   Sabtin


 ◆ Main purpose
 Sieve Filter  Strainer  Processing

◆ Main industries
Sieve: Solder, Toner, Silica, Silver powder, carrier, CaCO3, Battery material, Abrasive, Aluminum flake powder, Talc, Glass beads, Alumina etc.
Filter: Automotive component, Distilling column, Oil filter, Paste filtering, etc.


◆ Technical papers of ASADA MESH for download
Technical paper 1 (uniform opening +-10%)  (544kb)
Technical paper 2 (50% increased capacity at 54 to 82 microns opening) (374kb)


ASADA MESH is No.1 Stainless Screen manufacturer for accuracy, fineness and uniformity.
toll free #: 800-996-0070

ASADA stainless screen and V Screen technology are now indispensable for all screen-printing needs
(solar panels, circuit board, etc.).
ASADA Stainless Screen
** Precision Woven Low Elongation Screen Printing Products **

All of Asada's standard stainless steel wire mesh is woven with a special AD grade stainless steel, giving greater tensile strength, lower elongation and a higher yield point than conventional SUS 304 or 316. Strong mesh is good but thickness consistency is even more important. To control fabric thickness wires are individually inspected and selected for both the warp and weft. Using the most advanced weaving techniques, Asada supplies the uniform thickness and thread count you need to successfully print the demanding jobs of today and the future.

To make a super screen you need the world's strongest thread.

Asada pioneered use of high strength thin threads in 1990 and introduced 290 wire mesh with .0008 thread diameter. This allowed printing 3 mil lines with 4 mil spaces. Making wire mesh with a thread about half the size of the other brands is even more impressive when you realize that today more than 10 years later no other weaver can deliver this product. Asada knew he could do even more and has introduced more amazing mesh counts. Imagine what you could do with 30% less wire interference. patterns 30 to 50 micron line width (1.5 to 2 mil) with 50 to 75 micron pitch (2 to 3 mil) are being printed in production today thanks HS screen. Ask your DYNAMESH technical representative just what HS screen can do for you. You may see similar specifications in other catalogs but only HS wire from Asada is a regular production item that you can order today.



   Mesh Cloth for screen-printing
Technological needs are becoming increasingly advanced and diversified. To meet these needs, Asada Mesh offers a wide selection of wire mesh to suit applications in various fields.
>> No account with us? (new customers)

No problem. If you would like to buy Asada Mesh products through internet using your credit card, please visit
E-commerce site as follows.

You can buy Asada Mesh products (Screen mesh, limited items) through AAAmachine, Inc.
i-BES (international Buy-direct E-commerce service) using your credit card.
