Double Scrubber can now eliminate 1.5 micron or coarser dust from your exhaust
WET SCRUBBER - Principle
WET SCRUBBER
Efficiently collects dust, odor/bad smells, gas/vapor by mixing liquid
with gas containing dusts.

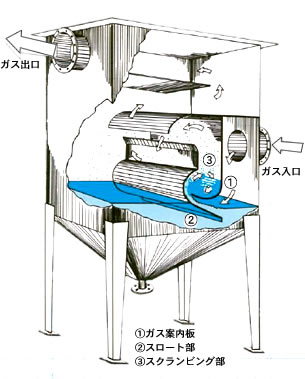

Gas containing dusts is introduced to the narrow pass #2 between the guide plate #1 and liquid surface.
And it is passing through very fast with much liquid, which makes it dispersed
and creates vortex at the scrubbing part #3.
Gas/liquid mixing is done here.
ACO Wet Scrubber (Single Scrubber)
ACO Wet Scrubber (Double Scrubber)
.

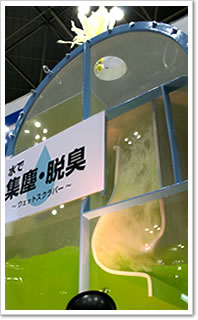

<Demonstration model (WS-03H)
in our laboratory in Chicago>
Double Scrubber
Double Scrubber dust removing efficiency (I - 1.5 microns top), compared with single scrubber (I - 8 microns top) for fly ash
microns of Fly Ash

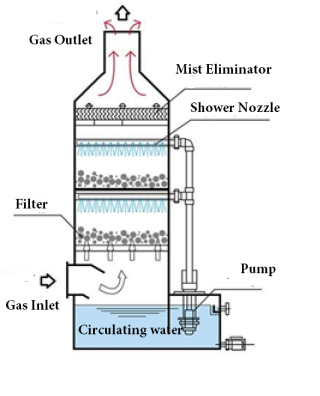

◎Typical Problems of Packed
Bed Scrubber◎
1) Easy to clog
2) Often declined gas flow rate
3) Takes time to wash filler
4) Necessity of regular maintenance
of pump and mist eliminator
>>> Solutions
◎ACO Wet Scrubber - holds water inside◎ 1) Requires no pump because gas itself draws water
2) Simple structure makes it possible "No Clogging"
3) No gas flow rate declined because of no clogging.
4) No clogging makes it possible "No Maintenance"
WET SCRUBBER - Features, Applications
ACO wet scrubber is used for various purpose, such as eliminating fine powder, bad smells, water soluble solvent, sticky/greasy
powder, etc. These are all not collected by bag filters. Sometimes they are scattered
in air, which used to be no other choice. Now, there is a solution - use
wet scrubber.
Features
Double Scrubber DWS-2.5F
●
●
●
●
Very simple structure
Easy maintenance and less trouble because of no moving parts inside
No pump is required because gas itself can disperse liquid
Low running cost because of low pressure drop (130mm - 5 inches water)
Applications
● ● ● ● ● ●
Hygroscopic dust
High temperature dust
Combustible/explosive dust
Poisonous gas
Bad smells gas
In case of removing odor by Ozone
Wet Scrubber Case Study 1
Client:
Glass Manufacturer
Use:
Exhaust gas collection from Borosilicate Glass melting furnace
Situation before installation:
1) In the bag filter, heated and vaporizing Borosilicate passed through
the filter, crystallizing and depositing inside the duct.
2) Filter clogging occurred due to Borosilicate crystallizing in the filter.
3) The factory was covered in dust due to loss of air volume and suction
in the bag filter because of clogging.
Solution:
Collect the crystallized dust while cooling the gas in the scrubber.
Apparatus:
Model Name: Double Wet Scrubber
Model Type: DWS-120-H
Air Volume: 120 m³/min @ 70℃ (4,236 cfm, 158 degree F)
Pressure loss: 2.5kPa (10" water)
Result:

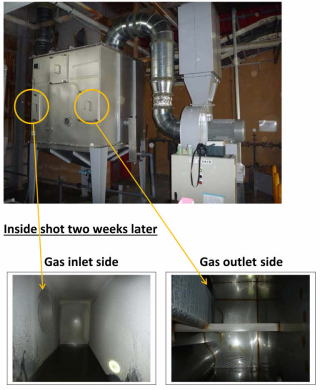

1) After installing a double wet scrubber, bag filter exhaust has been stabilized and suction has been restored, the factory environment has been also improved.
2) Filter maintenance disappeared.
Inside has become very clean in two weeks later.
Wet Scrubber Case Study 2
Client:
Metal Processing Manufacturer
Use:
Metal dust collection
Situation before installation:
Metal dust originating from a belt sander containing sparks
frequently caused fires in the bag filter.
Solution:
Remove the bag filter and replace with a wet scrubber.
Apparatus:

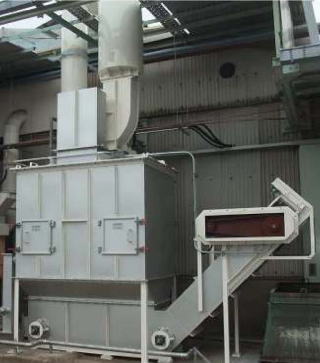

Model Name: Wet Scrubber
Model Type: WS-150-SC
Sludge Conveyor Type
Air Volume: 150 m³/min (5,295 cfm)
Pressure loss: 1.3kPa (5.1" water)
Result:
After installing a single wet scrubber, fires never occurred again.
Al;so, filter maintenance was no longer needed resulting in lower costs.
Wet Scrubber Case Study 3
Successive fire accidents at automobile parts factories. Wet Scrubber
eliminates potential hazards from the workplace and workers are saved from
risky situation.
Client:
Automobile parts manufacturer
Use:
Metal dust collection
Situation before installation:
Repeated fire accidents of dust collector in the process of manufacturing automobile parts were their major problems.
In the first stage of manufacturing, metal powder dust produced in the polishing process of large metallic plate is collected by bag filters. In this process, sparks come off when the metal is curved. The dust collector sucks the spark as well and then burns filters installed inside the unit frequently.
Filter change is fairly costly, and the workers always remain fraught with extreme risk because they need to respond to these frequent fires.
Solution:
They are in search for the dust collector which can prevent itself from
fire accidents. ACO proposed “Wet Scrubber”. The automobile parts company
ordered ACO to design fully tailored dust collector - wet scrubber to replace
the existing filter type dust collectors.
Result:
Wet Scrubber contains water inside and never result in a fire during its operation process, even though it continues to suck sparks together with metal dust.
It is not necessary to change the burnt filter and the workers do not have to cope with danger anymore.
First and foremost, it reduces cost because the filters are not necessary anymore.

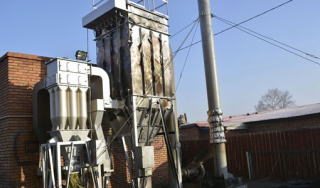

Dust collector after fire accident
Wet scrubber replaced with filter type

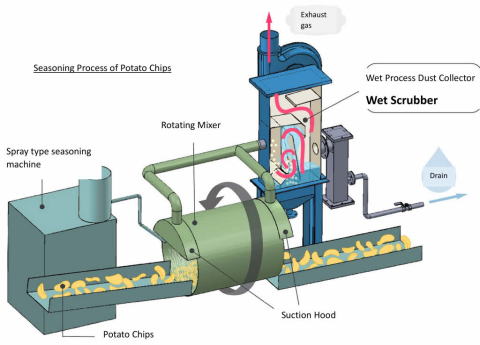

Wet Scrubber Case Study 4 [Confectionery Factory]
Troubles when collecting dust including Sticky ingredients
Client:
Potato chips manufacturer
Use:
Collecting dust from potato chips machine
Situation before installation: In the factory, they use dust collecting machine with filter……. but
①Inevitable decline in dust collecting efficiency
②High maintenance frequency
Result:
- No decline of dust collecting efficiency
- No clogging because it uses water
- No maintenance because equipped with Automatic Cleaning Devices
Wet Scrubber Case Study 5

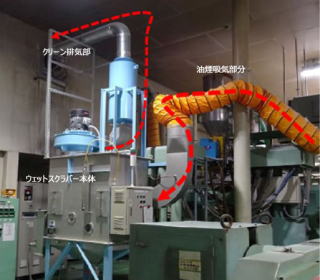

[Oily Smoke Polyethylene & Paper powder]
Dust collection・Deodorization・Fire prevention- by Installation of Wet Scrubber
Case study of oily smoke of Polyethylene and dust collection of paper powder
Before installation - Troubles before installation
• Not wanted to discharge outside the factory, such as oily smoke, paper
powder and odor that occur during production.
• Not wanted to make sticky dust buildup inside exhaust ducts.
• Wanted to prevent fires inside exhaust ducts.
Installation conditions
• Collection of oily smoke, sticky dust and odor.
• Prevention of piling up of dust inside the ducts.
Proposal and Result - Proposal by ACO CO., LTD.
Installation of「Wet Scrubber」which uses water. Wet Scrubber is clog free with sticky oily smoke orand dust with high enough flowing speedthe speed setting of flow rates which prevents from making dust build up inside ducts. As a result, no fire case occurred because fire can be extinguished and odor is rreduced.
Results
• Oily smoke and paper dust discharged outside the factory are drastically
reduced.
• Sticky dust which piles up inside the exhausted duct is drastically reduced.
• Successfully reduced the bad & uniquecharacteristic odor of exhaust.
• Zero duct fire.
• Maintenance is conducted only once in four months, just exchange water.
• It has been working without any problem since the purchase installation
of 2017.

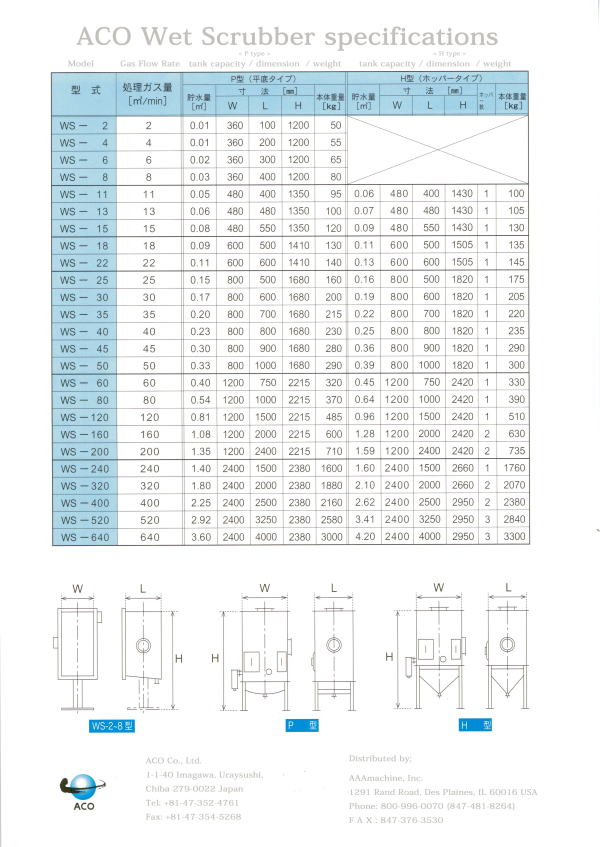

PDF brochure DOWNLOAD Wet Scrubber brochure -
4page
(2,029kb)
Please send us your inquiry from the following questionnaire.
JET SEPARATOR - Dust remover
Principle of dust removing by Jet Separator ==> animation
Dust removing test movie by Jet Separator ==> Click for the movie start
During pneumatic conveying of plastic pellets, fines,
streamers and fluff are created. Installation of an ACO Jet Separator at the
terminus of the pellet conveyor pipe effectively removes 99% of all
fines.
Dust removing
Removal of dust from harvested grain
products. Removal of fine powder from granules of agricultural
chemicals.
Recycling
Separation of useful materials from waste materials in recycling
processes.
Powder removal from crushed plastic of auto motive parts.
Features
1.
99.9% removal of Ribbons.
2.
Simple, compact ,trouble-free design.
3.
Everything inside the separator can be seen.
4.
No materials remain in the separator.

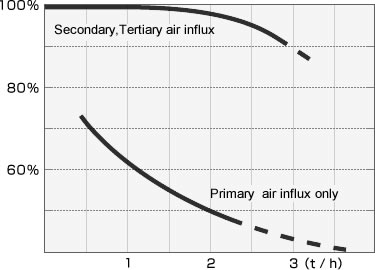

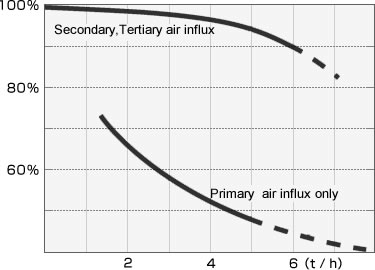

Ribbon removal
efficiency
Separation test where plastic pellets were
mixed with extremely fine cut film(ribbon)
CDs-300 Model
CFS-500
Model

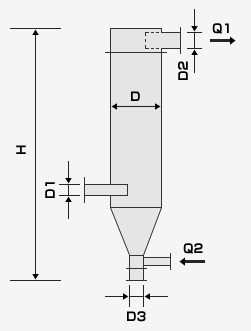

Processing ability and data
Model
D
D1
D2
D3
H
Q1
Q2
Processing
Amount
Intake Port
Exhaust Air
Exhaust Port
(mm)
(m3/min)
(kg/h)
CFS-100 ●●
Φ100
20A (Φ25)
32A (Φ38)
40A
500
1.1
0.4
～
80
CFS-150 ●
Φ165
32A (Φ38)
50A (Φ50)
80A
700
2.6
1.0
250
～
500
CFS-200
Φ216
40A
65A
100A
940
4.4
1.7
500
～
1000
CFS-250 ●
Φ267
50A
80A
125A
1110
6.6
2.6
700
～
1400
CFS-300 ●
Φ319
65A
100A
150A
1400
10
4.0
1150
～
2300
CFS-350
Φ350
65A
Φ130
150A
1580
12
4.8
1300
～
2600
CFS-400
Φ400
80A
125A
150A
1730
16
6.4
1600
～
3200
CFS-450
Φ450
90A
150A
200A
2000
20
8.0
2400
～
4800
CFS-500 ●
Φ500
100A
Φ180
200A
2200
25
10.0
3000
～
6000
CFS-600
Φ600
125A
200A
Φ230
2650
36
14.0
4300
～
8600
CFS-700 ●
Φ700
125A
φ240
Φ270
3100
49
20.0
5500
～
11000
CFS-800
Φ800
150A
Φ280
Φ310
3500
64
25.0
7500
～
15000
CFS-900
Φ900
150A
300A
Φ350
4000
81
32.0
9500
～
19000
CFS-1000
Φ1000
200A
350A
Φ390
4400
100
40.0
11000
～
22000
CFS-1100
Φ1100
200A
Φ380
Φ430
4800
121
48.0
14000
～
28000
CFS-1200●
Φ1200
250A
Φ420
Φ470
5300
144
57.0
17000
～
34000

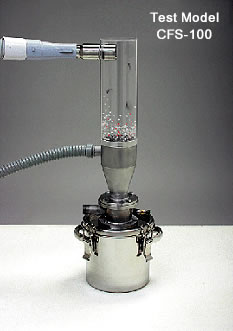

【Test Equipment】 ●mark models are available in Japan. ●mark models are available in Chicago. ●Please call AAAmachine at 800-996-0070. You can see AAAmachine laboratory
(CFS-100) in details by visiting this page.
Manufactured by
ACO Co., Ltd. 1-1-40 Imagawa, Uraysushi,
Chiba 279-0022 Japan
Tel: +81-47-352-4761
Fax: +81-47-354-5268 E-mail
Powered/Marketed by
AAAmachine, Inc.
1291 Rand Road, Des Plaines, IL 60016 USA
Phone: 800-996-0070 (847-481-8264)
F A X : 847-376-3530 E-mail
>
