Create Clean Rooms to Standard with Rope Controlled Mitsumi Iris Valves

Mitsumi Iris Valves are highly effective when used as pass through (diaphragm) valves in isolation environments like clean rooms, lab chambers, blasting booths, and others. Mitsumi’s high-strength but flexible rope and sleeves form an airtight seal around any shaped tubing or piping. When not in use the valve can be completely closed to maintain an airtight and dust-free environment. And the valves lock and unlock with a simple 90° turn, which makes rerunning conduits a breeze.

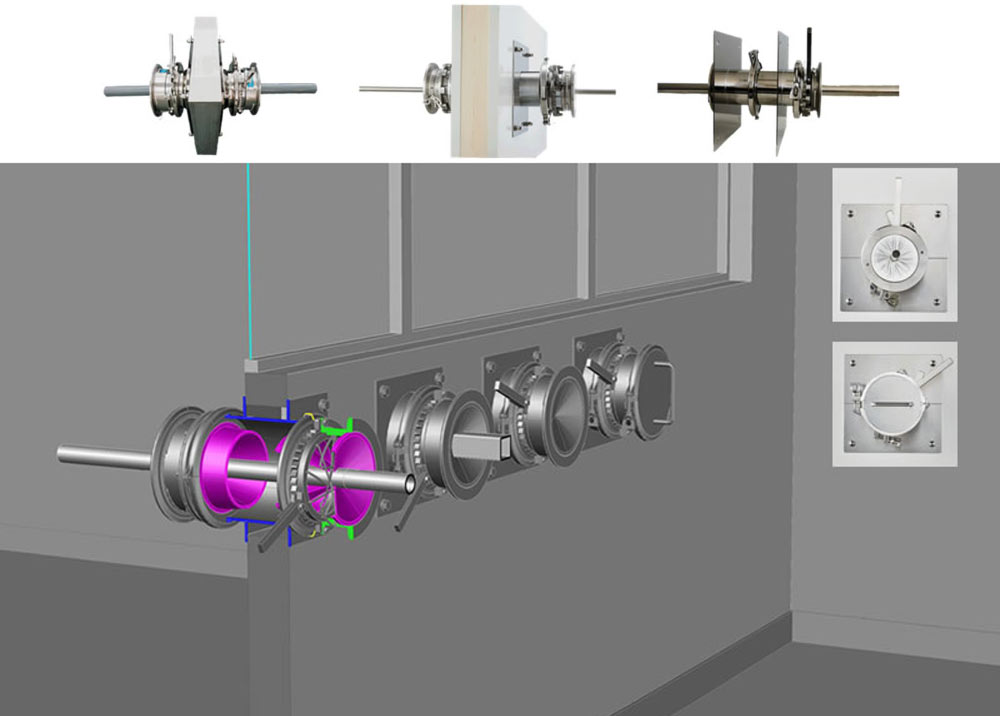

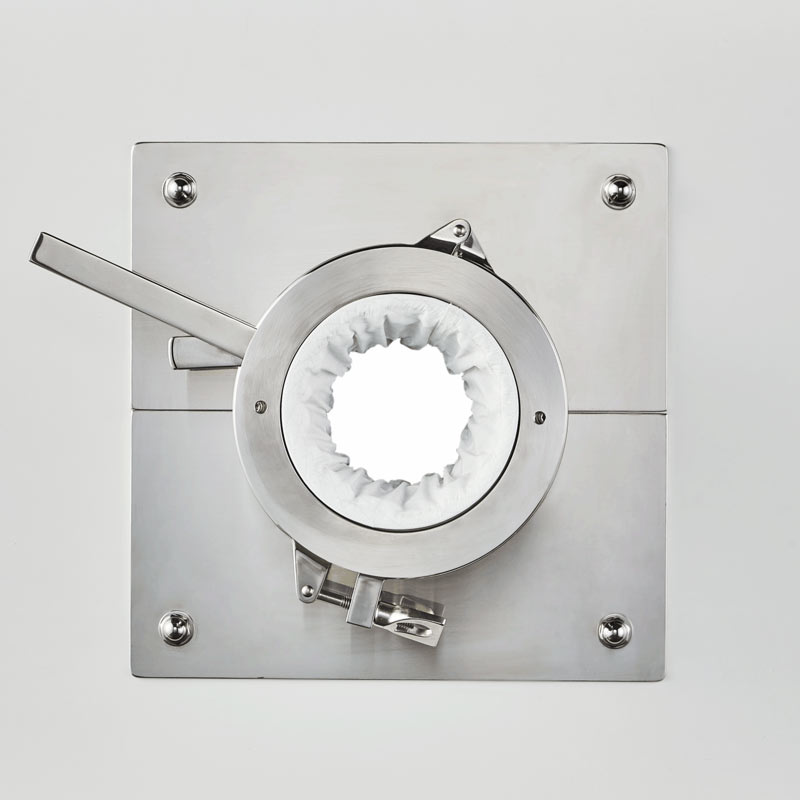

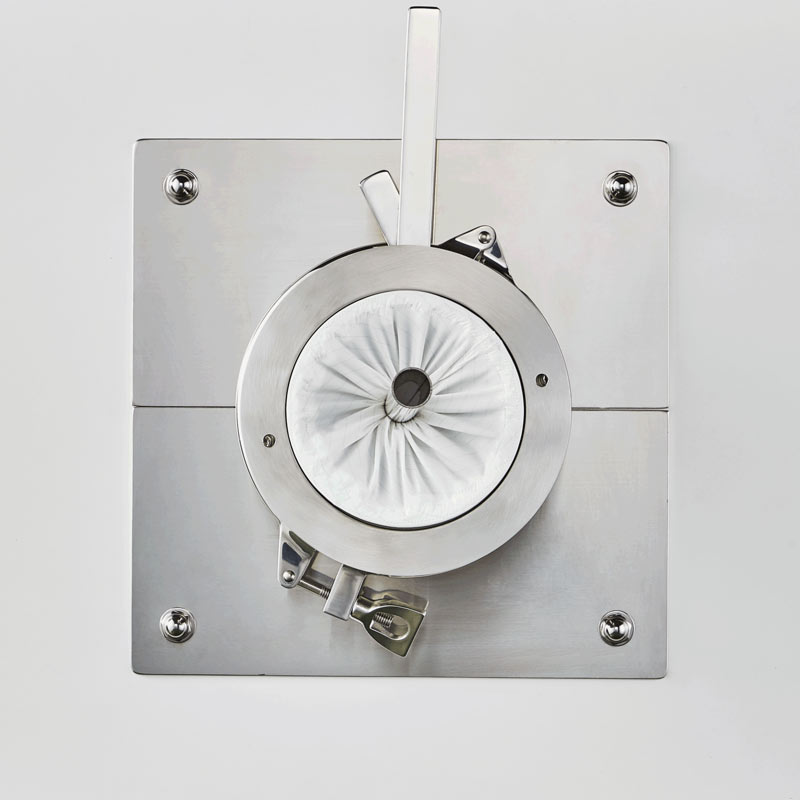

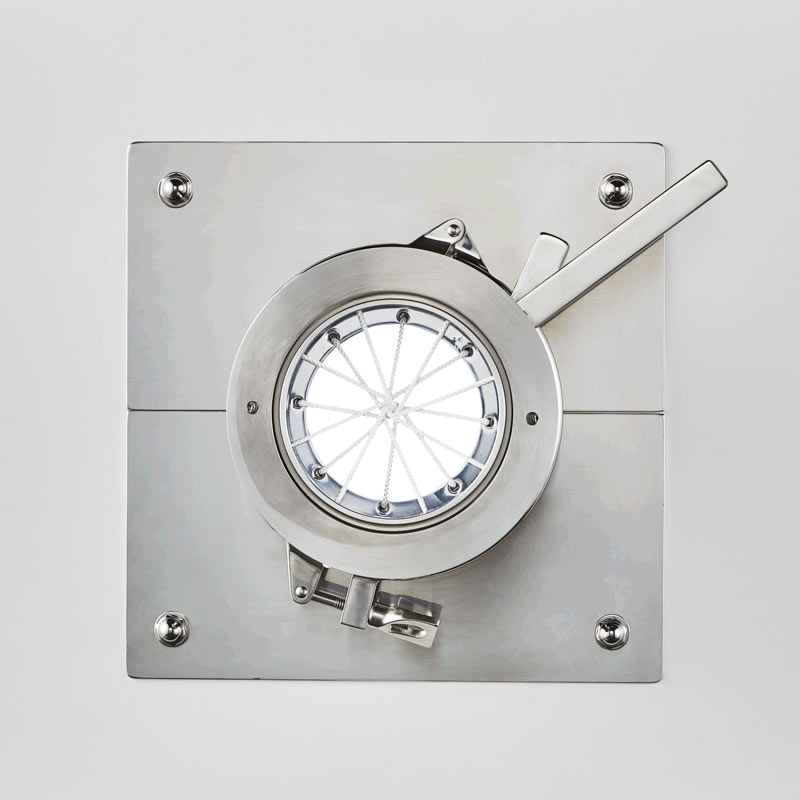

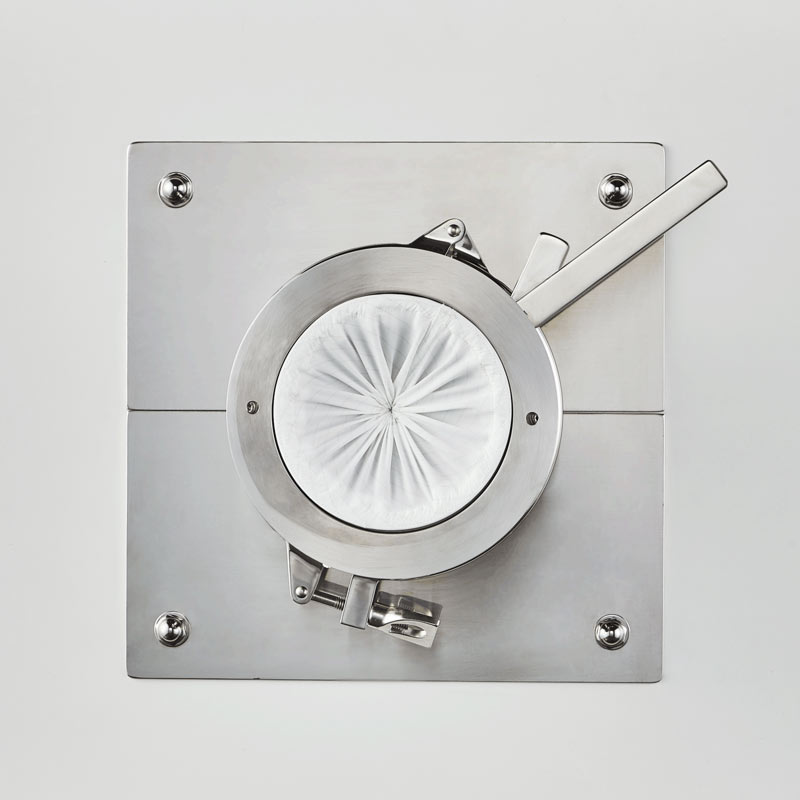

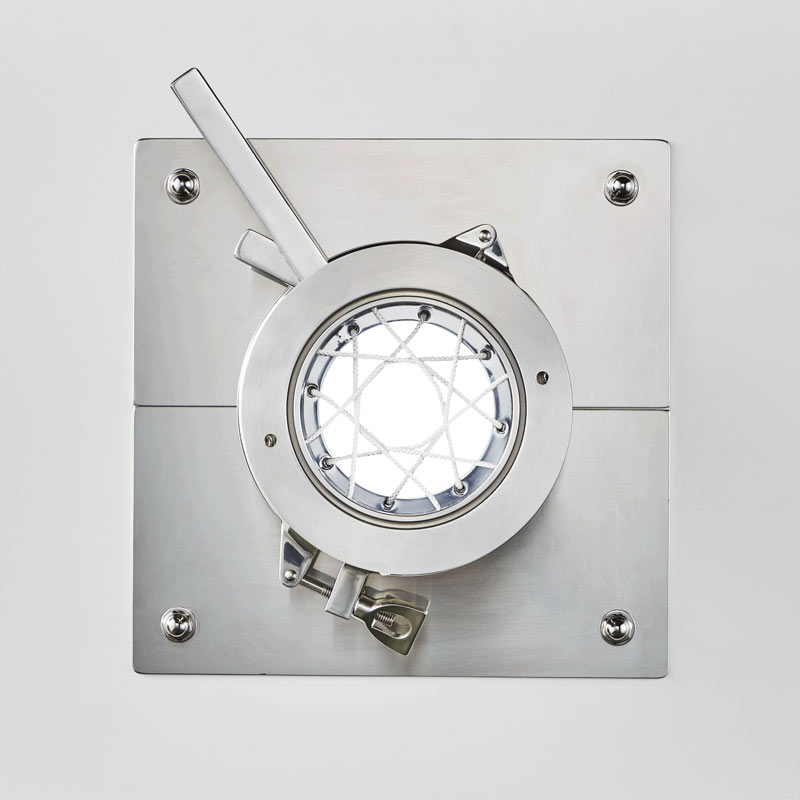

The sleeve is set in a flange on the valve casing with choke ropes running in parallel between the two rings of the casing. Turning the handle 90° rotates the ropes so they close the sleeve and form a complete seal.

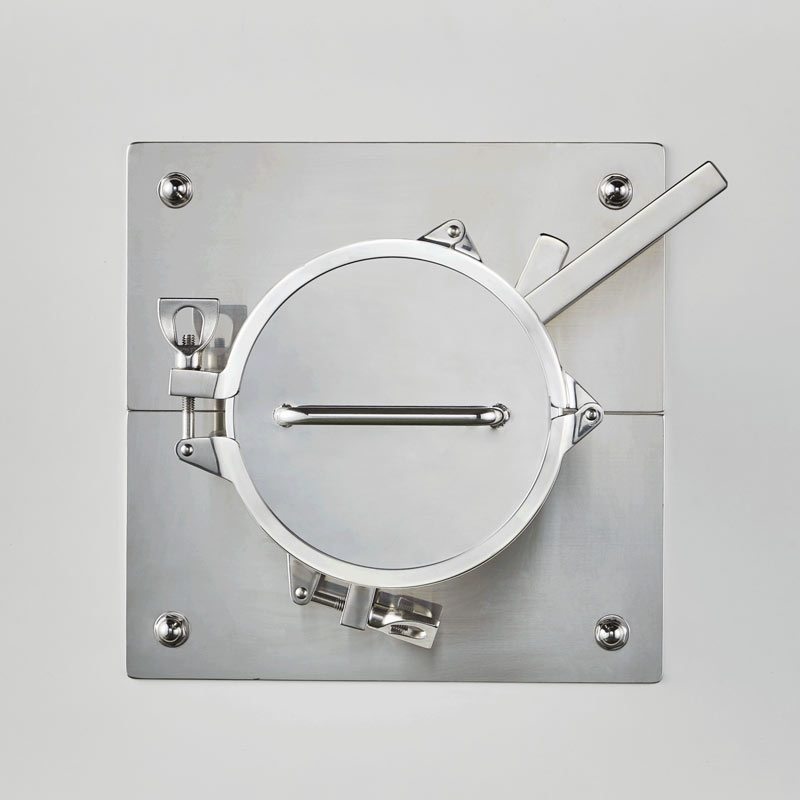

Wall Penetration Valve
Wall Penetration Valve
Wall Penetration Valve
Wall Penetration Valve
Wall Penetration Valve
Wall Penetration Valve

Key Features

Airtight Around Any Shape

Forms an airtight seal around any shaped conduit

Custom OK

Sleeves can receive a variety of treatments for custom environmental needs

90 Degree Turn Seals Valve

Valve can be completely sealed with just a quarter turn of the handle

Under 2 min.

Sleeve is easily replaced in under two minutes to help maintain up-time

General Specifications

A, AH, SS = Aluminum, Aluminum Hardened, Stainless Steel.

Component
A Model
Iris Valve
AH Model
Iris Valve
SS Model
Iris Valve
Casing Aluminum alloy (AC7A) with surface hardening Aluminum alloy (AC7A) with PTFE hardening Stainless Steel (SUS304)
Bore Size 3.5” (80A) – 25” (600A)
Choke Ring Aluminum alloy (AC7A) with surface hardening or Chrome-plated iron (SS400(JIS)) Aluminum alloy (AC7A) with PTFE hardening Chrome-plated stainless steel (SUS304)
Choke Rope Ultra-high molecular weight polyethylene fiber
Handle (Manual) Aluminum alloy (A6063(JIS)) with surface hardening Aluminum alloy (A6063(JIS)) with PTFE hardening Chrome-plated stainless steel (SUS304)
Opener Stainless steel (SUS304)
Sleeve Cloth: PTFE, cotton, silk Synthetics: nylon, polyester, polyethylene, rubbers, PVC, Hypalon, Viton, etc. Other: natural rubber, aluminum leaf laminated sheets, etc.
