For inquiry about

Valve, Gate, Damper,

please feel free to contact AAAmachine at toll free # 800-996-0070
or use the questionnaire at the bottom of this page.




Valve, Gate, Damper


Iris Diaphragm Valve - MITSUMI Technical Industry

Slide Gate Valve - TSUKASA Industry

Pneumatic Conveyor Valve - TAKAGAKI SEISAKUSHO

Square Shut-off Valve before Scale - TAKAGAKI SEISAKUSHO

Rotary Valve (even for toner) - FLUID ENGINEERING

Back to Category List



[ Valve, Gate, Damper ]

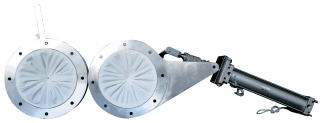

MITSUMI Iris Valve "CHOKE VALVE"
MITSUMI Technical Industry (Japan)

=>



contact
PDF brochure DOWNLOAD
Not available

AAA features
1) About 90 degree motion can open/close the valve.
2) Compact and light weight
3) Minimum powder residue having no obstacles on the valve sleeve
4) Various materials available for the body, flange and sleeve
5) Compatible with sanitary and fine chemical spec

Applications
The big advantage is "half action" compared with the normal iris valves. About 90 degree rotation can close/open the valve. As a result, air cylinder can be used for this automatic operation (open/close).
Motor drive is generally used for conventional iris valve for 180 degree rotation, which could increase the total cost of the iris valve system. Mitsumi iris valve can decrease these peripheral cost and simplify the automatic control for powder process.

Also, as operators do not have to move the handle in 180 degree, this will help minimizing the operators' burden. Mitsumi iris valve can keep workers health.

Industries
food, pharmaceuticals, plastic, chemical, etc.




POWGATE (Slide Gate Valve)
TSUKASA Industry (Japan)


contact
PDF brochure DOWNLOAD
Tsukasa - POWGATE Slide Gate Valve_brochure_2page (2,157kb)

AAA features
(1)Structure is simple, reducing trouble and facilitating maintenance.
(2) Seal system is designed for particular usage conditions prevents particulate clogging by improving seal performance.

Applications
<Square type> For standard or oblong discharge ports.
Discharge of particulates beneath conveyors, tanks, or similar areas.
<Round type> For round discharge ports.
Discharge of particulates beneath silos, check bins, or similar areas

Industries
food, wheat flour, starch, chemical,e etc.




Pneumatic Conveyor Valve
TAKAGAKI SEISAKUSHO (Japan)

Test/processing service Available at AAAmachine Chicago

You can buy THIS from BUY-DIRECT site i-BES

contact
PDF brochure DOWNLOAD
Takagaki - Pneumatic Conveyor Valve_brochure_1page (115kb)

300 mm/400 mm diameter (2 models)


AAA features
(1) Non metal touch/Non gasket,
(2) NOT significant leakage

(3) Perfect for hopper bottom for pneumatic conveying

Industries
food, wheat flour, starch, chemical,e etc.



Square Shut-off Valve before Scale
TAKAGAKI SEISAKUSHO (Japan)

You can buy THIS from BUY-DIRECT site i-BES

contact
PDF brochure DOWNLOAD
Takagaki - Pneumatic Conveyor Valve_brochure_1page (115kb)
150*150mm, 200*200mm, 250*250mm (3 models)

AAA features
(1) Metal touch/Non gasket
(2) Clean shut-off

(3) Perfect for the end of screw conveyor before scale

Industries
food, wheat flour, starch, chemical,e etc.

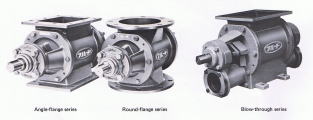

Rotary Valve
FLUID ENGINEERING (Japan)

contact
PDF brochure DOWNLOAD
Rotary_valve_brochure_2page (643kb)
Rotary_valve_estimate_request-Fluid_Eng_1page (13kb)

AAA features
(1) Rotary Valve for sticky powder/plastics (working for toner)
(2) Minimize clogging using special rotor blades

Industries
toners, ceramics, minerals, food, chemical
