Wet Classifier

PRODUCT OVERVIEW Advanced Centrifugal Wet Classifier

0.1 micron precision

The Satake i Classifier is the only classification system on the market capable of reliably separating powder materials at 0.1 microns. Its unique adjustable rotor-driven centrifuge allows a higher degree of control over powder classification than any other system on the market.

Lineup i Classifier Models

Satake is now selling next generation i Classifier systems in North America.

Laboratory Model

For small batch testing and research
Processing Volume: Up to 1.3 gallons per hour

Production Model

For production and testing
Processing Volume: Up to 26.5 gallons per hour

Advanced Model

For high volume production
Processing Volume: 130-265 gallons per hour

The i Classifier Production Model is sold either stand-alone or packaged with all necessary peripherals, including pump, holding tank, and instrumentation.

i Classifier i Classifier Advantages

Industry leading performance

Precision Cut Point Control

You get higher purity products, greater recovery rates, and highly monodisperse particles in a very narrow distribution range.

Superior Efficiency

See higher yields and zero waste via constant recirculation. You get faster classification and much higher efficiency.

Wet Mixture Advantages

Reduced collisions and agglomeration. Zero dust. The ability to deliver your final product as a wet slurry.

Classifier System

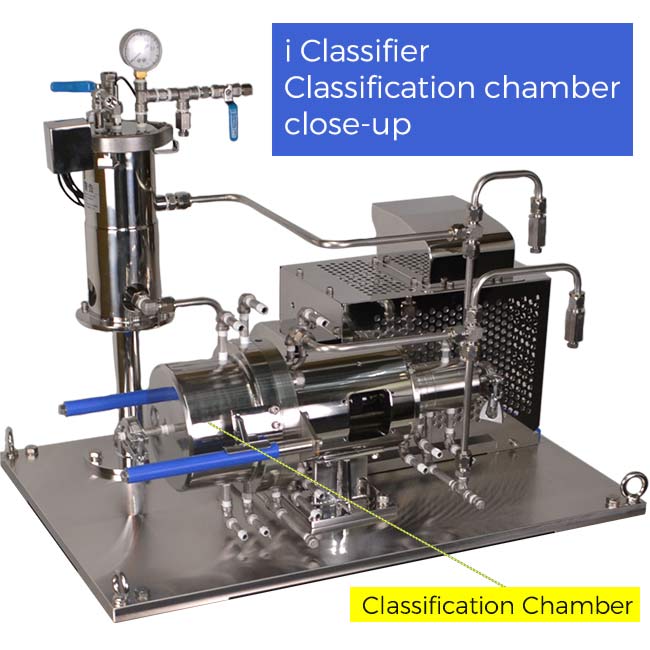

Classifier Unit

Exsample Classifying Premium Materials

WE SERVE THESE INDUSTRIES

Electronics

Batteries

Pharmaceutical

Cosmetics

Powder Treatments

Next Generation Activated Particles

STATS TABLE i Classifier Production Model Specifications

Machine Specifications

Item		Specifications
Main unit dimensions		23.6”×35.4”×63”
Weight		440lb (plus peripherals)
Rotational speed		2000–7000RPM (adjustable)
Peripheral speed		32.8–98.4 feet/sec
Throughput		5.3 gal/hr (maximum)
Classification chamber capacity		0.105 gal
Wetted part material Shaft seal part	Rotor	SUS304,316L/zirconia
	Vessel	SUS304,316L/zirconia
	O-ring	FFKM
	Others	SUS304,316L
Seal liquid		Double mechanical seal

Utility Specifications

Item		Specifications
Power supply		AC 200V, 3-phase, 50/60Hz
Power		2200 W (main unit only)
Compressed air or nitrogen		116 psi (for sealing liquid pressurization)
Cooling water		14.5–29 psi 0.5–0.8 gal/min
