ULTRASONIC LEVEL SENSOR (FOR POWDER AND LIQUID) |
 |
The ultrasonic level meter is designed specially for medium range measurement of powder and liquid levels. Its simple construction with no converter required lends to ease of installation and wiring and improved maintainability. Dedicated software is installed so that the level meter is ready for highly accurate measurement after simply entering required parameters. |
Measurement
range |
Integrated
flange type
Powder(liquid)
1.1-10m(25m)
1.1-20m(45m)
1.8-25m(70m) |
Adjustable
flange type
Powder(liquid)
0.9-10m(25m)
0.9-20m(45m)
1.6-25m(70m) |
Separate
type
Powder(liquid)
0.9-10m(25m)
0.9-20m(45m)
1.6-25m(70m) |
Model
PE93
PE95
PE96 |
| Accuracy |
±0.25％ F.S. |
|
Contact for additional information |
|
| |
|
|
|
| |
|
ULTRASONIC LEVEL METER (FOR LIQUID) |
 |
The ultrasonic level meter is designed specifically for short range measurement of liquid levels. Its simple construction with no converter required lends to ease of installation and wiring and improved maintainability. Dedicated software is installed so that the level meter is ready for highly accurate measurement after simply entering required parameters. The instrument fulfills its function even in severe environmental conditions where corrosive gas or vapor is generated. |
|
| |
|
|
|
| |
|
PULSE RADAR (FOR SHORT RANGE) |
  |
The pulse radar type microwave level meter is designed specifically for medium range measurement of levels of all kinds of powder, granular and bulk solids. Superb stability of measurement is assured by know-how cultivated over many years to counter the suspended dust and other such inhibiting factors and by microwave technology. Adjustments are done simply by entering required parameters. Air purge and other optional functions are also available to meet various environmental conditions of measurement. |
|
| |
|
|
|
| |
|
|
PULSE RADAR TYPE MICROWAVE LEVEL METER (FOR LONG RANGE) |
  |
The pulse radar type microwave level meter is designed specifically for
long range measurement of levels of all kinds of powder, granular and bulk
solids. Superb stability of measurement is assured even for liquid, fly
ash, collected dust and other such difficult-to-measure objects. Adjustments
are done simply by entering required parameters. This is a highly powerful
sensor capable of measuring even inside a silo shielded with resin, glass
or the like. |
|
| |
|
|
|
| |
|
|
MICROWAVE LEVEL METER |
 |
Level Measurement of Molten metal, Molten steel and Raw Materials in Blast Furnace
Microwave Level Meter, with its particular feature that is hardly influenced by the measuring conditions, can be utilized for level measurement under the severe environment where high density dust exists at high temperature and high pressure. It is utilized for level measurement of raw materials of blast furnace, molten metal, molten steel, slag and raw materials of CDQ. |
|
| |
|
|
|
| |
|
|

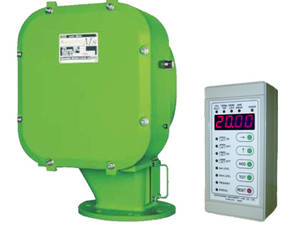

SOUNDING M’s |
 |
Sounding M’s, which is the ultimate series of MATSUSHIMA’s sounding level meter, can save much cost for installation as it needs only 4-core cable for wiring, doesn’t need any tiresome adjustment as it can easily be set at control unit and can be applied to various applications such as high temperature, high pressure, low temperature, explosion proof, etc... Sounding M’s as a general-purpose sounding level meter provides stable measurement with reasonable price.
|
|
| |
|
|
|
| |
|
|

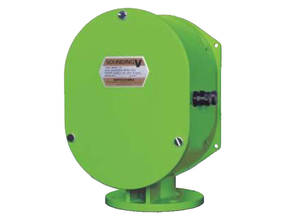

SOUNDING V
|
 |
Sounding V is a compact type level meter which is produced to pursue low price and smaller size, however, completely includes the control circuit in the main body and is possible to make measurement by manual switch, auto-measurement by built-in timer and signal output according to the level setting.By the Sounding V, continuous level measurement is possible with the cost equivalent to a few units of point level equipment, and it is suited to storage management for various kinds of powder such as grain, feed, etc... |
|
| |
|
|
|
| |
|
|
SOUNDING DEVICE
|
 |
Heavy Duty Type Level Meter
Sounding Device is a heavy duty type level meter which has been manufactured for 50 years and over. Since a firm reduction gear employed,level measurement under the severe environment having high temperature and high density dust can be done. Suited to be used for storage level measurement over the wide range from powder of low density up to lump materials. Backed up with large actual results of delivery to the industries such as iron ＆ steel, nonferrous metal, cement, power plant, etc... |
Measurement range |
0 to 40m(Option: up to 150m) |
| Accuracy |
1 to 1.5 % |
| Output signal |
Synchro type, Potentiometer, Encoder transmitter,
4～20mA DC,etc |
| |
Contact for additional information |
|
| |
|
|
|
| |
|
|
|
|
