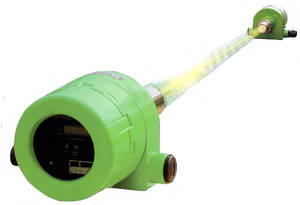

MICROWAVE BARRIER SWITCH

Non-Contact Level Switch for Bulk
Solids/Powder

Microwave Barrier Switch detects the upper and lower limits of silo, hopper, etc... The microwave system enables non-contact detection and easy maintenance. Further the mounting positions can be easily decided because detection works when the accumulation of material blocks the straight line between transmitter and receiver. Max.detection distance 100m realized. Small detection area dia.25mm of transmitter/receiver enables easy installation. Free voltage model from AC80 to AC240V reliable against unexpected voltage variation and disturbance noise. Exact and stable sensitivity setting can be made easily. Self-diagnosis function automatically detects decrease of sensitivity due to adhesion etc.

Setting range	Max.100m
Frequency	24GHz band
Allowable pressure	Below approx. 0.5MPa(5kg/cm2)
	Contact for additional information

MICROWAVE FLOW SWITCH

Non-Contact Movement Detection Sensor

Microwave Flow Switch, applying the principle of Doppler Effect, is a flow detection sensor for bulk solid/powder applicable to various application like flow monitoring of pneumatic feeding line, plugged chute detecton, etc... High performance in flow and plugged detection for dry powder. Hardly influenced by adhesion or dust because of high permeability microwave system. Self-diagnosis function automatically detecting decrease of sensitivity. Digital circuit system preventing set value from drifting. Withstanding pressure ability up to ±980kPa internal- pressure in pipe.

Setting range	Max. 1.5m
Frequency	24GHz band
Allowable pressure	approx. ±980kPa(9kgf/cm2)or below
	Contact for additional information

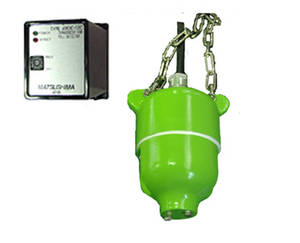

FULL DETECTOR (Tilt Switch)

Full Detector is the tilting type level switch so designed to be hung in the tank with a stainless chain. When the switch inclines above 20 degrees owing to the increase of stored material, the internal detecting ball moves to operate limit switch. Widely used for upper limit detection of hopper/silo, plugged chute detection, etc...

Detecting method	Tilting angle detection
Suspending distance	(Max.5mm) from the mouning surface
	Contact for additional information

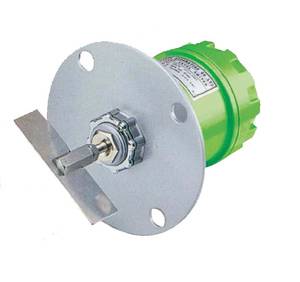

ROTARY PADDLE

Upper Level Detection for Powder Material

Paddle Type Level Switch is used for upper limit detection for powder or bulk material in silo, hopper, etc... The rotating paddle continuously rotates and outputs the detection signal when the paddle is buried in powder and its rotating torque exceeds certain value. For installation, wall side mounting or suspension mounting can be selected. In case of suspension mounting, expansion type or wire-rope type which the detecting position is adjustable, is available.

Detecting method	Rotating torque paddle system
Detecting torque	11.8 to 16.7N・cm
Mounting	JIS5K65A Flange
Contact output	SPDT×1 250VAC 5A(Resistance load)
	Contact for additional information

VIBRATING LEVEL SWITCH VIBRANIVO 2000 SERIES

Level Detection for Powder Material

Vibrating Level Switch outputs detection signal when the detection area vibrating by constant frequency is covered by powder material, etc... Since the constant frequency is adjustable by the sensitivity adjustment volume,it is possible to detect various powder from fine powder like toner to plastic pellet, etc... It is possible to detect such powder material that density is over 0.32g/cm3.

Detecting method	Vibrating probe
Object material	Particle, powder, fine powder, etc.
Installation	Sleeve type, Cable suspension type and Expansion type
Probe length	275mm～1.5m
Contact output	1 contact (Cap. AC 250V 5A)
	Contact for additional information

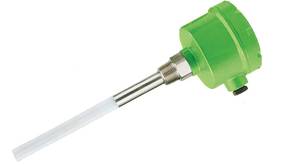

CAPACITIVE LEVEL SWITCH

Level Detection for Bulk Solids

Capacitive Level Switch has two electrode types which are rod (probe) type and wire type to suit for various applications. Electrode consists of insulation area (made of polyacetals ) and probe area. Both rod type and wire type have big electrode and are strong against buried situation, therefore, it suits not only powder but also bulk materials.

Contact for additional information

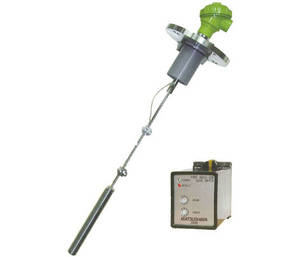

CONDUCTIVE LEVEL SWITCH

Level Detection for Bulk Solids

Conductive LEVEL SWITCH consists of a Detector and Transducer and applies weak current on electrode and detects the level when materials touch the electrode.
The Detector has an insulation hood as standard and can prevent malfunction caused by clinging.
Easy to install and no mechanical wearing because there is no rotating and sliding portion. Easy to use without diffucult knowledge.

Probe length	Max. 5m
	Contact for additional information
